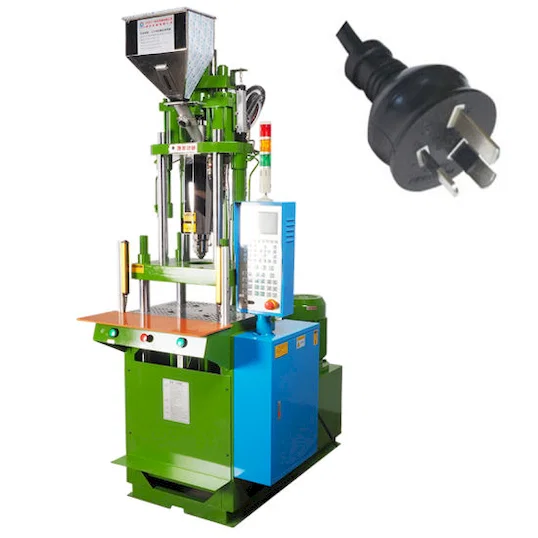

Mesin Cetak PVC Steker 3-Pin Australia 450ST
Mesin Cetak PVC Steker 3-Pin Australia 450ST Thumb

Mesin Cetak PVC Steker 3-Pin Australia 450ST

  • Model No: 450ST

  • Au Standard 3 Flat Pin PVC Plastic Injection Machine, Mesin Injeksi Steker Kabel, Mesin Pembuat Steker 3 Pin, Mesin
    Injeksi Vertikal Steker Kabel MODEL JY-450ST
    Diameter Sekrup 30mm
    Aman Shot Weight (PS) 2.6OZ
    Opening Stroke 200mm
    Clamping Force (T) 45Tons
    Platen Ukuran 580×430mm
    Jarak Antara Tie Bere 410×250mm
    Min Tinggi Cetakan (KW / HP) 220 / 70mm
    Daya Motor Pompa 5.5 / 7.5 / HP
    Dimensi Mesin (LxWxH) 1.7×1.2×3.0m
    Jumlah Kontrol Suhu Output Pompa 3PCS
    37.2L / mnt
    Kapasitas Reservoir Minyak 130Liter
    Daya Pemanasan Barel 2.8KW
    Konsumsi Air Pendingin 600-800L / jam
    Total Daya 9KW
    Berat Mesin 1.8Tons&a

  • Inquiry now

Detailed description


Au Standard 3 Flat Pin PVC Plastic Injection Making Machine
Cable Plug Injection Machine, 3 Pin Plug Making Machine, Cable Plug Vertical Injection Machine

Info dasar


Nomor Model.
JY-450ST
Sertifikasi
M, ISO9001:2008
Merek dagang
Paket Transportasi
Kotak Kayu
Asal
Cina
Kode HS
8477209000

Spesifikasi mesin cetak injeksi plastik vertikal:

POLA JY-450ST
Diameter sekrup 30mm 32mm 35mm
Berat Tembakan Aman (PS) 2.6OZ 3.0OZ 3.75OZ
Stroke Pembuka 200mm
Kekuatan Penjepit (T) 45 Ton
Ukuran Platen 580×430mm
Jarak Antara Tie Bere   410×250mm
Tinggi Cetakan Min (KW / HP)  220/70mm
Daya Motor Pum 5.5 / 7.5 / HP
Dimensi Mesin (PxLxT) 1,7×1,2×3,0m
Jumlah Kontrol Suhu 3 PCS
Keluaran Pompa 37.2L / mnt
Kapasitas Reservoir Minyak 130 Liter
Daya Pemanasan Barel 2.8KW
Konsumsi Air Pendingin 600-800L / jam
Daya Total 9KW
Berat Mesin 1.8 Ton
Berat Pengiriman 1.9 Ton

Detail Pelat Cetakan:

 Au Standard 3 Flat Pin PVC Plastic Injection Making Machine Cable Plug Injection Machine, 3 Pin Plug Making Machine, Cable Plug Vertical Injection Machine

Functions
1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure, and screw speed is suitable for various plastic to be confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has left out the attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of the die.
5) Material tube can be lifted. It is easy to clean the stub bar. It is easy to fix the die.
6) Can be installed on a single mold or double shuttle table.


Machine Application
     vertical injection machines have the advantage of low noise, low energy consumption, high efficiency, and long lifetime, it's widely applied to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables, auto parts, Plug, etc.

 Au Standard 3 Flat Pin PVC Plastic Injection Making Machine Cable Plug Injection Machine, 3 Pin Plug Making Machine, Cable Plug Vertical Injection Machine

Au Standard 3 Flat Pin PVC Plastic Injection Making Machine
